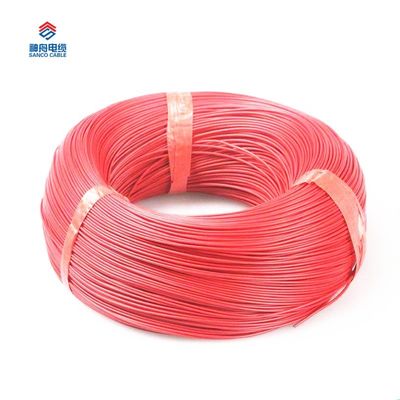

High Tempered PTFE Coated Silver Plated Copper Cable Wire
Fluorine Plastic High Temperature Wire
Applications
PTFE coated cable is primarily used for connecting internal electrical equipment and instrument lines in aircraft, airships, armored vehicles, ships, and other specialized applications under high temperature environments.
Product Features
- High temperature and cold resistance
- Excellent flexibility and aging resistance
- Anti-interference properties
- Easy insulation stripping and conductor welding
- Soft construction with small diameter
- Ideal for frequent bending applications
Cable Structure
Specification: 0.013~5 square millimeter

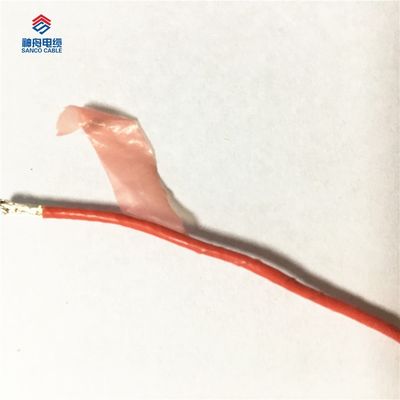

Insulation: PTFE film insulation
Conductor: 0.03--0.08mm copper wire or silver-plated copper wire wrapped by PTFE film
Wire core options: 1, 7, 19, 30, 42, 49, 75, 100 strands

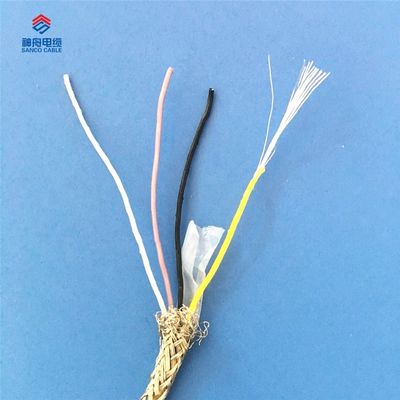

Shielding: Tinned copper wire weave shielded
Temperature range: Copper: -200°C to +60°C, Silver plated copper: -60°C to +250°C
Rated voltage: 220V or below
Color options: 10 basic colors (black, brown, red, orange, yellow, green, blue, grey, white, violet)
Types and Specifications
| Type |
Name |
Working Temperature |
Rated Voltage |
| AF, AFS |
Copper conductor PTFE film insulation hook up wire |
-60°C to +200°C |
AC220V and below |
| AF-1, AFS-1 |
Silver coated copper PTFE film insulation hook-up wire |
-60°C to +250°C |
AC220V and below |
| AFR-200 |
Copper conductor PTFE film insulation hook-up wire |
-60°C to +200°C |
AC220V and below |
| AFR-250 |
Silver coated copper conductor PTFE film insulation hook-up wire |
-60°C to +250°C |
AC220V and below |
| AFP |
Copper conductor PTFE film insulation screen hook-up wire |
-60°C to +200°C |
AC220V and below |
| AFP-1 |
Silver coated copper conductor PTFE film insulation screen hook-up wire |
-60°C to +250°C |
AC220V and below |
| AFRP-200 |
Copper conductor PTFE film insulation shield hook up wire |
-60°C to +200°C |
AC220V and below |
| AFRP-250 |
Silver coated copper conductor PTFE film insulation shield hook-up wire |
-60°C to +250°C |
AC220V and below |
| AFRPF-250, AFPF |
Silver coated copper conductor PTFE film insulation PTFE film sheath shield hook-up wire |
-60°C to +250°C |
AC220V and below |
| AFSP |
Mini double core shield wire |
-60°C to +250°C |
AC220V and below |
| AFSF |
Mini double core sheathed wire |
-60°C to +250°C |
AC220V and below |
| AFSPF |
Mini double conductor sheathed shield wire |
-60°C to +250°C |
AC220V and below |
Cable Specifications
| Wire Gauge |
Cross-section Area |
Conductor Structure |
Max.OD of Wire |
Reference Weight kg/km |
| 36AWG |
0.013 |
7/0.05 |
0.57 |
0.44 |
| 32AWG |
0.035 |
7/0.08 |
0.67 |
0.73 |
| - |
0.05 |
10/0.08 |
0.72 |
0.91 |
| - |
0.07 |
14/0.08 |
0.75 |
1.16 |
| - |
0.1 |
21/0.08 |
0.85 |
1.57 |
| 26AWG |
0.12 |
24/0.08 |
0.85 |
1.66 |
| - |
0.14/0.15 |
30/0.08 |
0.9 |
2.07 |
| - |
0.2 |
42/0.08 |
1 |
2.72 |
| - |
0.25 |
56/0.08 |
1.1 |
3.47 |
| 22AWG |
0.3 |
62/0.08 |
1.18 |
4.2 |
| - |
0.35 |
75/0.08 |
1.2 |
4.7 |
| 20AWG |
0.5 |
63/0.1 |
1.45 |
5.36 |
| - |
0.75/0.80 |
91/0.1 |
1.69 |
8.19 |
| 18AWG |
1 |
56/0.15 |
1.95 |
10.9 |
Note: PTFE coated cable core numbers and specifications are not limited to the above regulations and can be customized.
Company Information
Factory
Shenzhou Special Cable is a reputed manufacturer of military and consumer cables. Our main products include:
- High temperature wires cables, PTFE coated cable, FEP cable, Fluoroplastic wire silver plated cable
- Rubber cable, welding cable, mine cable, submersible cable
- Hook up wire, electronic cable
- Salor cable, control cable, power cable
Team
To meet customer demand, we have:
- Advanced R&D staff: 5 persons
- Professional transport team
- High-quality engineering installation team
- Professional talented technicians group
- International sales department: 6 persons
- Domestic sales: 15 persons
- QC team: 10 persons
Workshop
- Production line: 9 lines
- Monthly production capacity: 90,000m
- Production workers: about 250 persons
- Annual production capacity: RMB 20 million
- Advanced electrical, chemical and mechanical properties test equipment for Silver plated cable

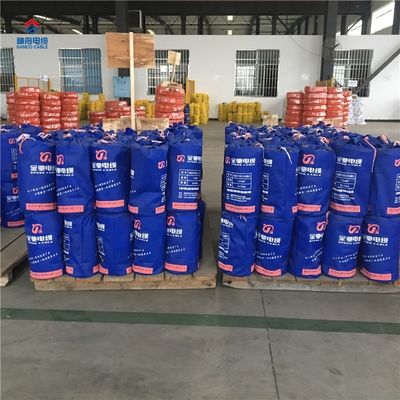

Warehouse
More than 600 square meters finished product warehouse. Xiangtan Shenzhou Special Cable Co., Ltd also engaged in:
- Low smoke zero halogen compounds
- XLPE compound
- Soft PVC compound for cable insulation or sheath
Product Testing
We focus on quality. Over the past years, our company seriously carries out its responsibility for product quality, guarantees repair, replacement and return for products that have quality problems during manufacture, and compensates for direct economic loss caused by quality problems.
Our Customers
In the past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India. With more than 20 years experience in cable production, we hope that our profession and high quality service will bring you success and satisfied purchasing experience.
Why Choose Us
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military. Customer satisfaction is our primary aim.
| No. |
Item |
Faulty Products |
Our Products |
| 1. |
Length |
Insufficient length |
Sufficient |
| 2. |
Wire drawing |
Thick at both ends and thin in the middle |
Same from beginning to end |
| 3. |
Conductor |
Copper clad aluminum, Copper clad brass |
99.999% pure copper |
| 4. |
Insulation |
Recycled compound |
Virgin compound |
If you want to know how to identify quality cables,
click here.
Our Service
- Free technical consultation service before, during, and after sales to help customers choose the right product
- Free sample and design services
- Free service for any special monitor and conduct detection during manufacture process
- Provide 100% free insurance for internal transportation
- OEM & ODM welcome
- Small orders accepted
Packing & Shipping
Packaging options for High Tempered PTFE Coated Silver Plated Copper Cable Wire:

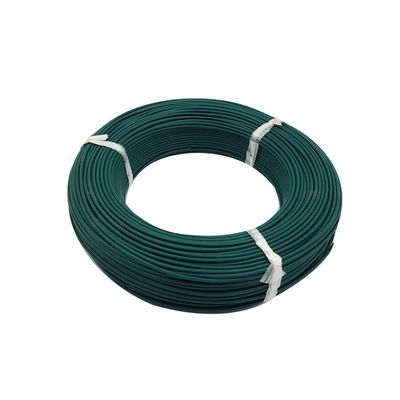

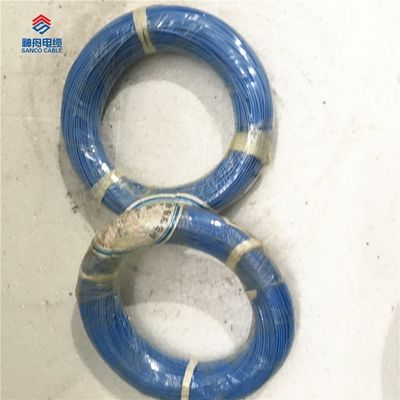

- 100m/coil with non-woven bag
- 200m/Roll with film
- 500m with wooden drum
- 800m with wooden iron drum
Additional packaging options:
- Polyethylene film winding in roll with non-woven bag or carton box for small diameter wires (100m/roll)
- Packing in drum with plastic tray (300m/drum)
- Wooden drums, fumigated wooden drums, Wooden iron drums for large diameter cable (500/drum)
We can supply fumigation package and certificate. Shipping options include sea, train, express or upon clients' demands.
Frequently Asked Questions
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
2. Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military, with 21 years experience. We produce our own cable compounds, which is how we maintain superior quality and competitive offers for global valued customers.
3. Q: How do you guarantee your product quality?
A: Quality is our priority. We treat quality control as the most important thing from the very beginning to the very end. In design, materials procurement, manufacturing, semi-finished products testing, and finished product inspection, we maintain strict control to ensure product quality.
4. Q: What's the warranty of your products?
A: We provide 1 year complete warranty service. If the products have quality problems, we plan to replace or return them unconditionally.
